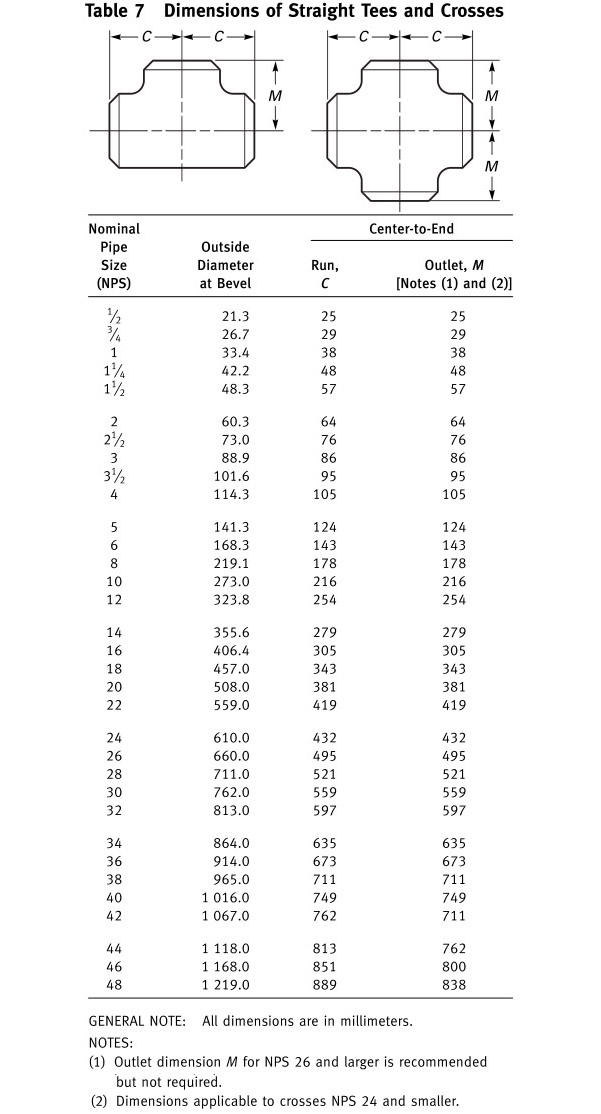

Titanium Straight Tees and Crosses
Standard: ASTM B363, ASME SB363, ASME B16.9, ANSI B16.9

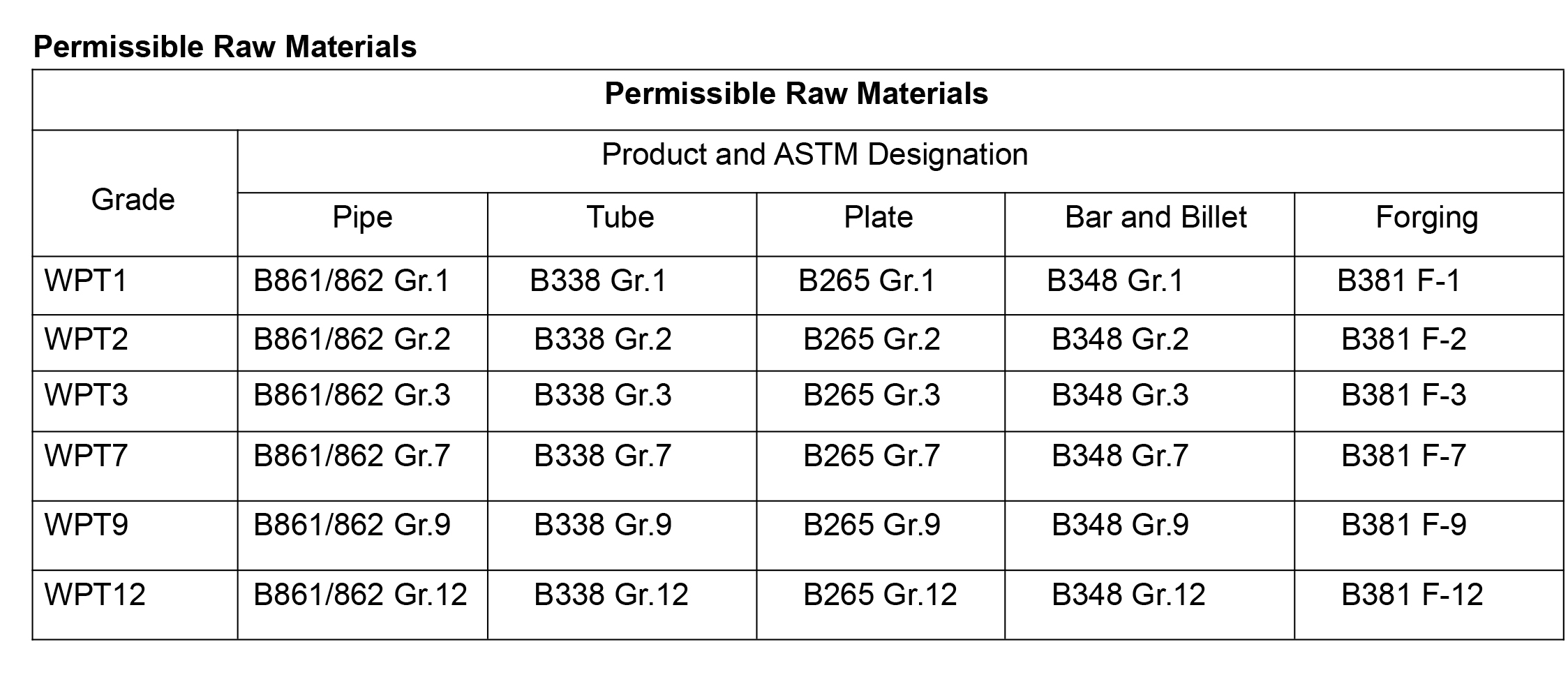

Grade: Gr.1, Gr.2, Gr.3, Gr.7, Gr.9, Gr.12
Type: Equal and Reducing
Seamless, Welded
SIZE: OD18-114.3 mm * WT 2.0-9.0 mm----SMLS pipe fittings
OD139.7-1220 mm * WT 2.0-30 mm----Welded pipe fittings
Technique: Pressing, Welded, Seamless
Non-standard products will be acc. to customer drawings to process.
Grade: Gr.1, Gr.2, Gr.3, Gr.7, Gr.9, Gr.12
Type: Equal and Reducing
Seamless, Welded
SIZE: OD18-114.3 mm * WT 2.0-9.0 mm----SMLS pipe fittings
OD139.7-1220 mm * WT 2.0-30 mm----Welded pipe fittings
Technique: Pressing, Welded, Seamless
Non-standard products will be acc. to customer drawings to process.
More Details
Surface: Sand blasting, Pickling, Polishing.
Quality control testing: 100% X-ray detection (RT);
100% Surface penetration test (PT)
Price: Acc.to each unit, qty’ and other special request of clients.
Application fields: Structure Pipe, Gas Pipe, Hydraulic Pipe, Chemical Fertilizer Pipe etc.
